Description

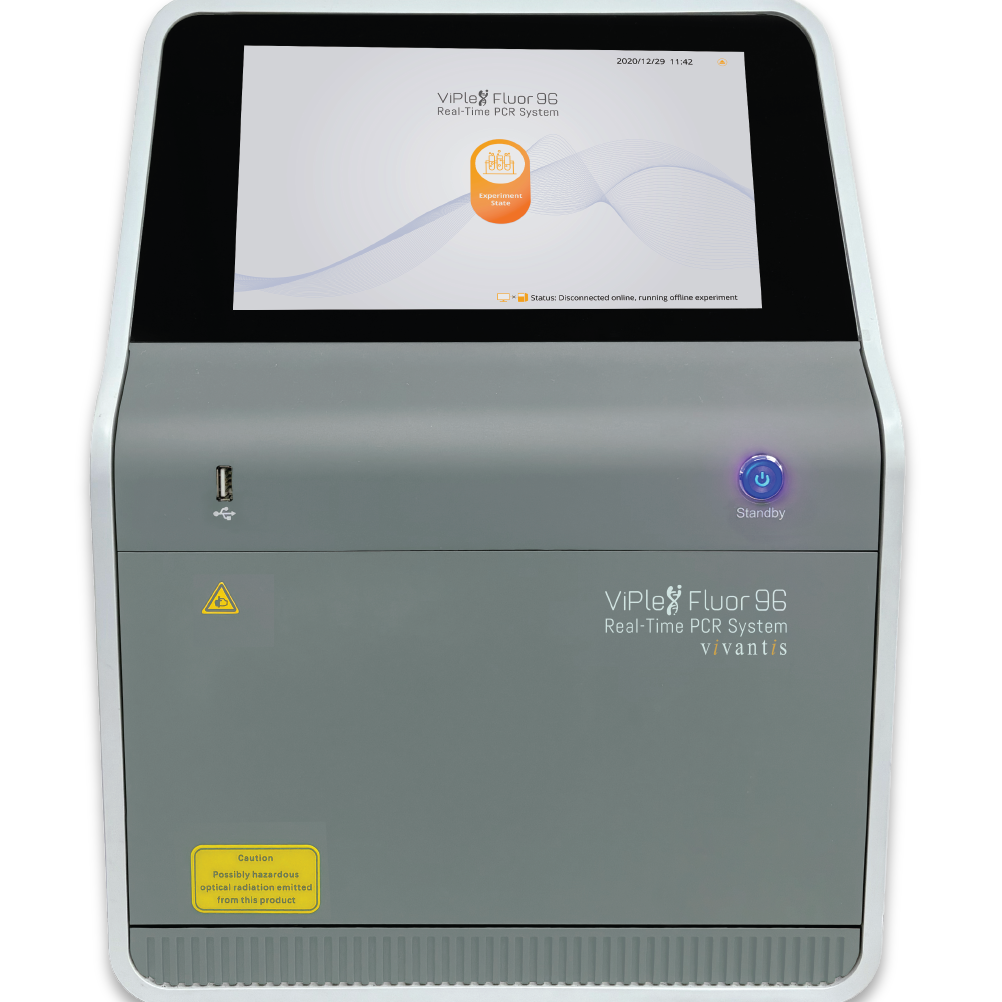

The ViPlex Fluor96 Real-Time PCR System, a touchscreen quantitative fluorescence real-time PCR system that is engineered to redefine your molecular analysis experience. With versatile temperature control modes of Block or Analog Tube, this system offers adaptability to suit diverse experimental setups. Its dual operating system and intuitive 10-inch high-definition colour touchscreen provide seamless navigation, while the built-in analysis software ensures effortless usability
Combining cutting-edge thermal cycling technology, precise photomultiplier tube detection, and robust software capabilities, the ViPlex Fluor96 Real-Time PCR System guarantees the utmost accuracy in your experimental results. Whether you are conducting gene expression analysis, SNP genotyping or pathogen detection, this innovative PCR system empowers you to achieve groundbreaking discoveries with confidence. Trust in ViPlex Fluor96 Real-Time PCR System to elevate the accuracy and efficiency of your molecular analysis, leading you towards unprecedented scientific advancements
Applications
|
 |
Features
 |

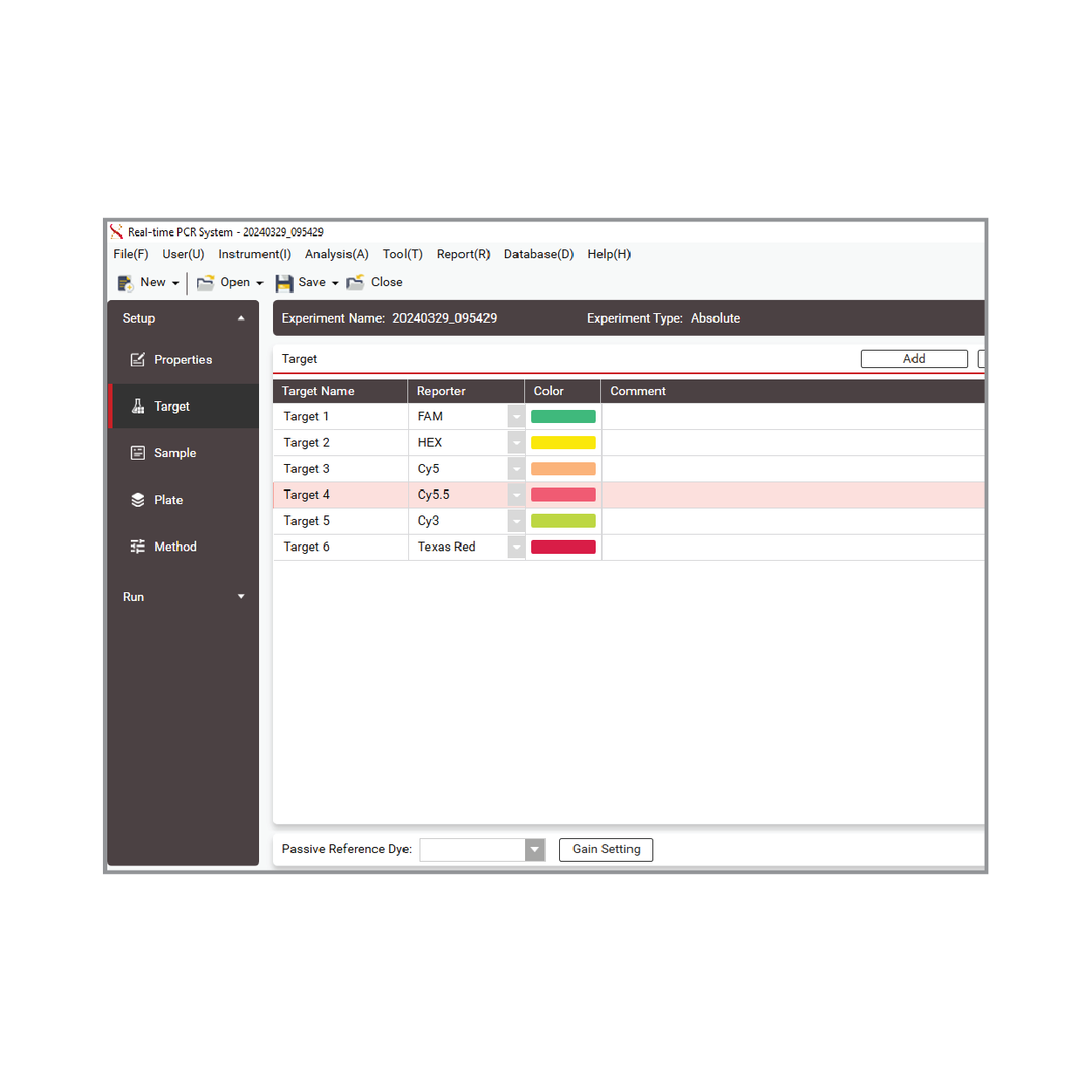

Versatile 6-channel platform available for the widest range of dyes available: FAM™/SYBR Green; H E X ™ / V I C ® / T E T ™ / J O E ™ ; TAMRA/NED™/Cy3™; ROX™/ Texas Red®; Cy5™; Cy5.5™ |
 |

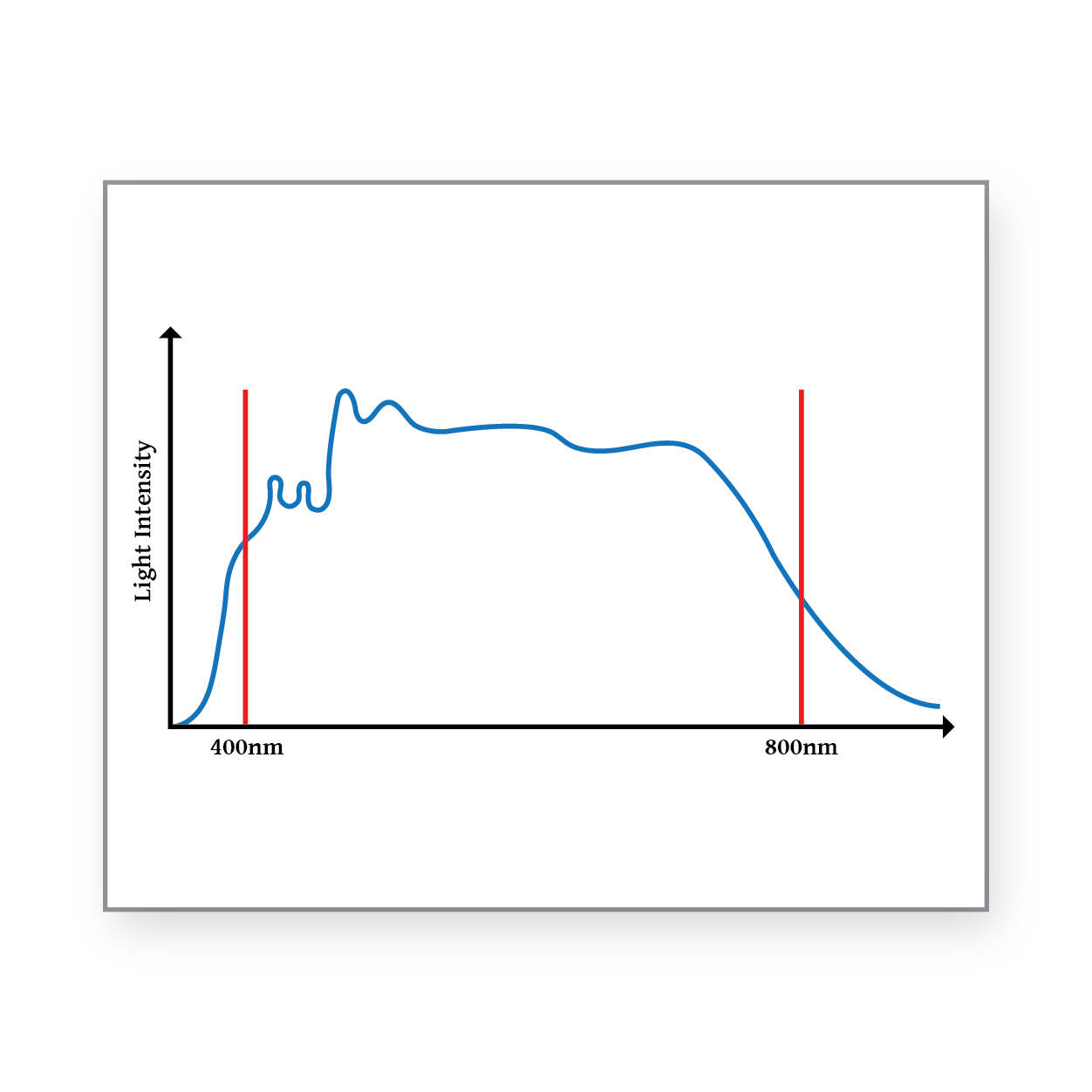

High Sensitivity Full-spectrum high-power LED with highly sensitive Hamamatsu photomultiplier tube top scanning enables for high sensitivity of the system |
 |
High Accuracy High accuracy temperature control guarantees the system block temperature resolution and uniformity at ≤ 0.1°C |
 |

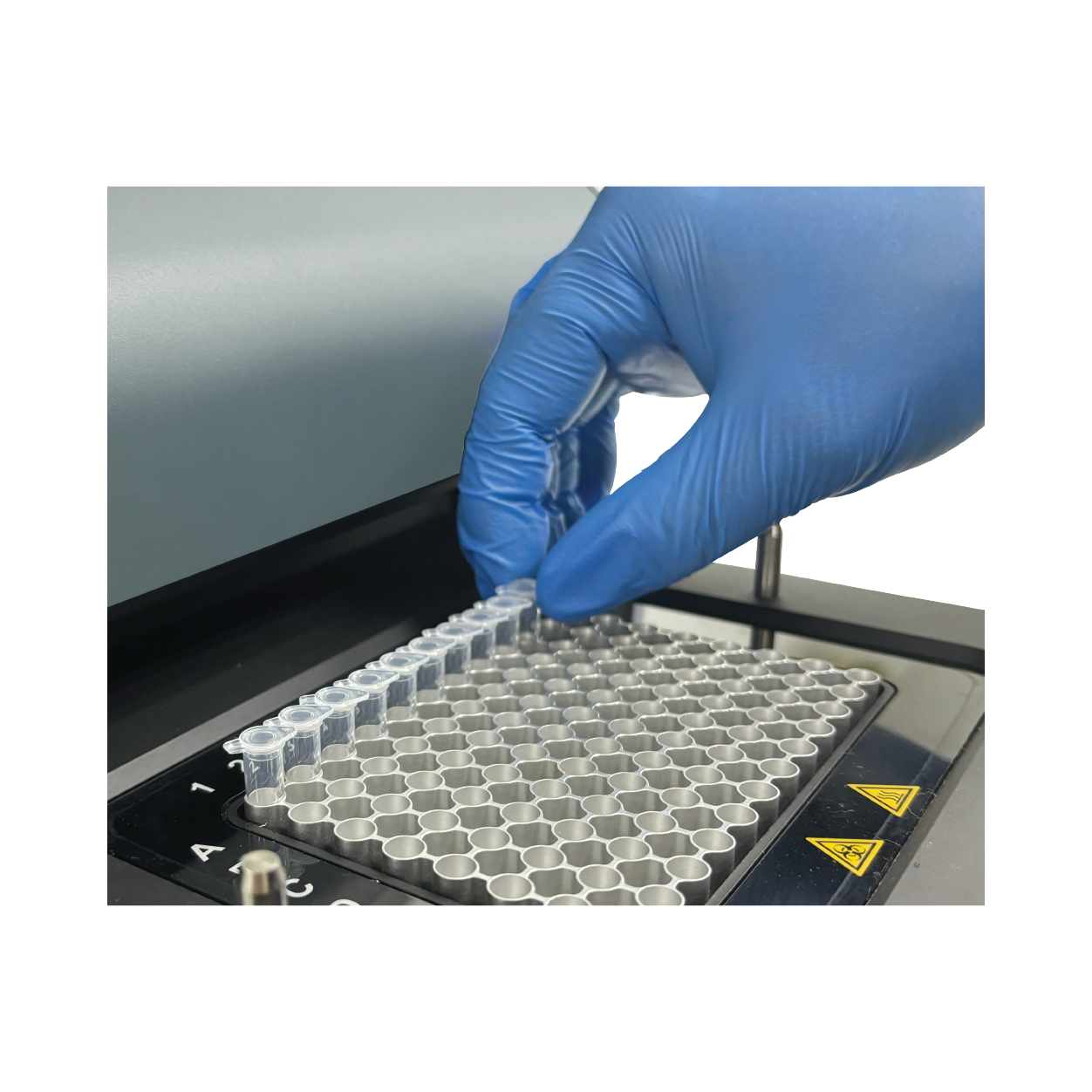

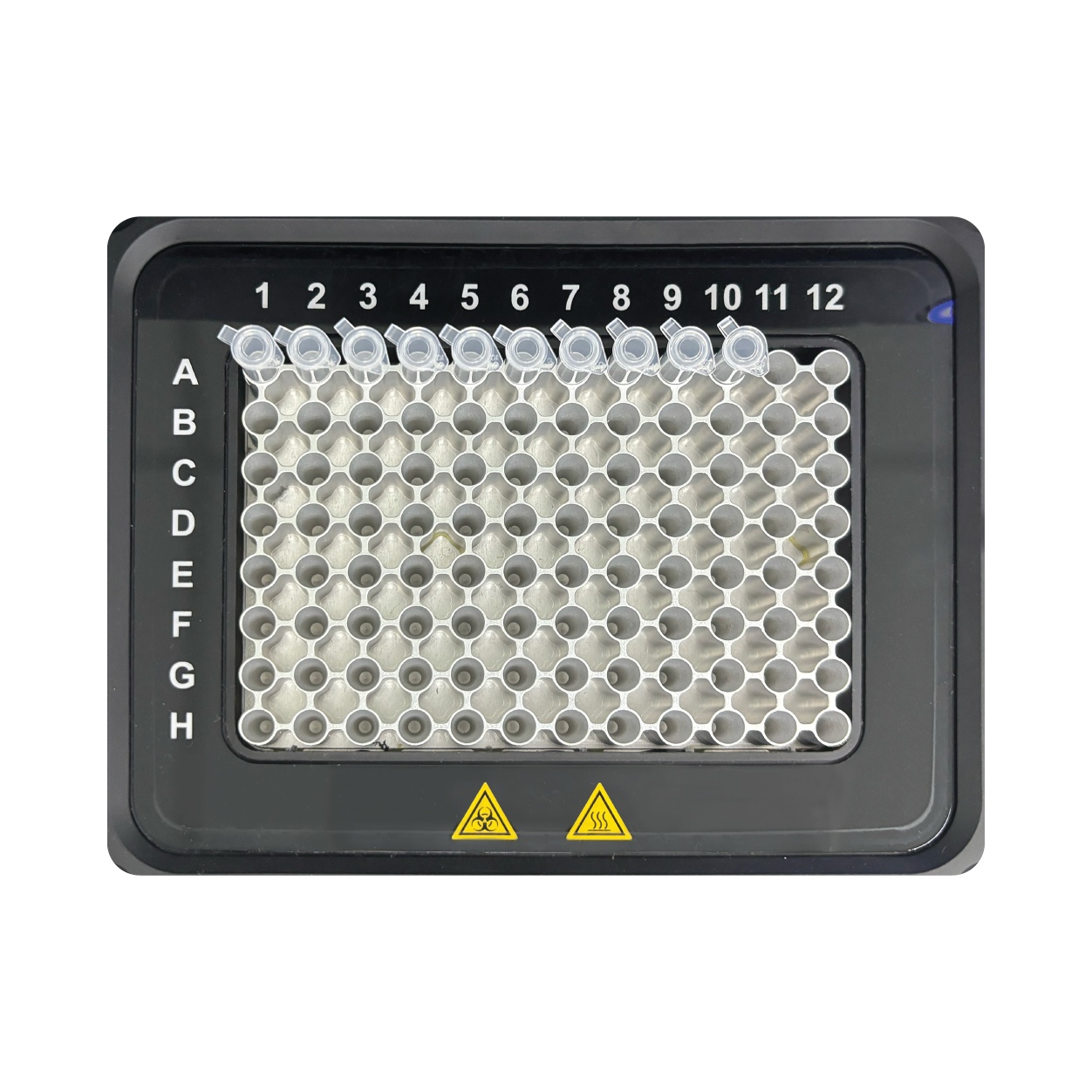

High Consumables Flexibility Universal block for clear 0.2ml flat PCR tubes; 0.2ml 8-tube flat PCR strip; 96 well of 0.2ml half-skirted or no-skirted plate |
 |

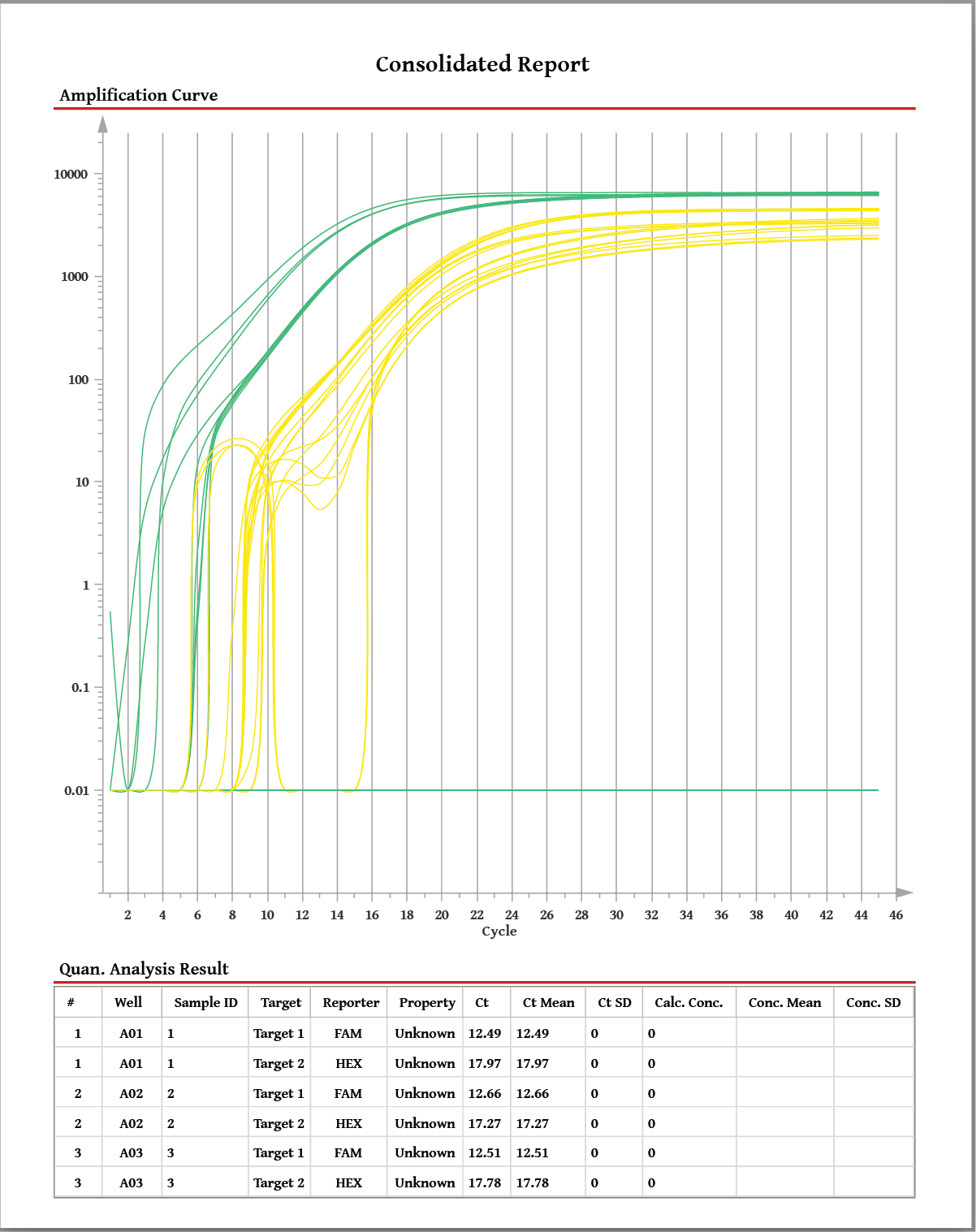

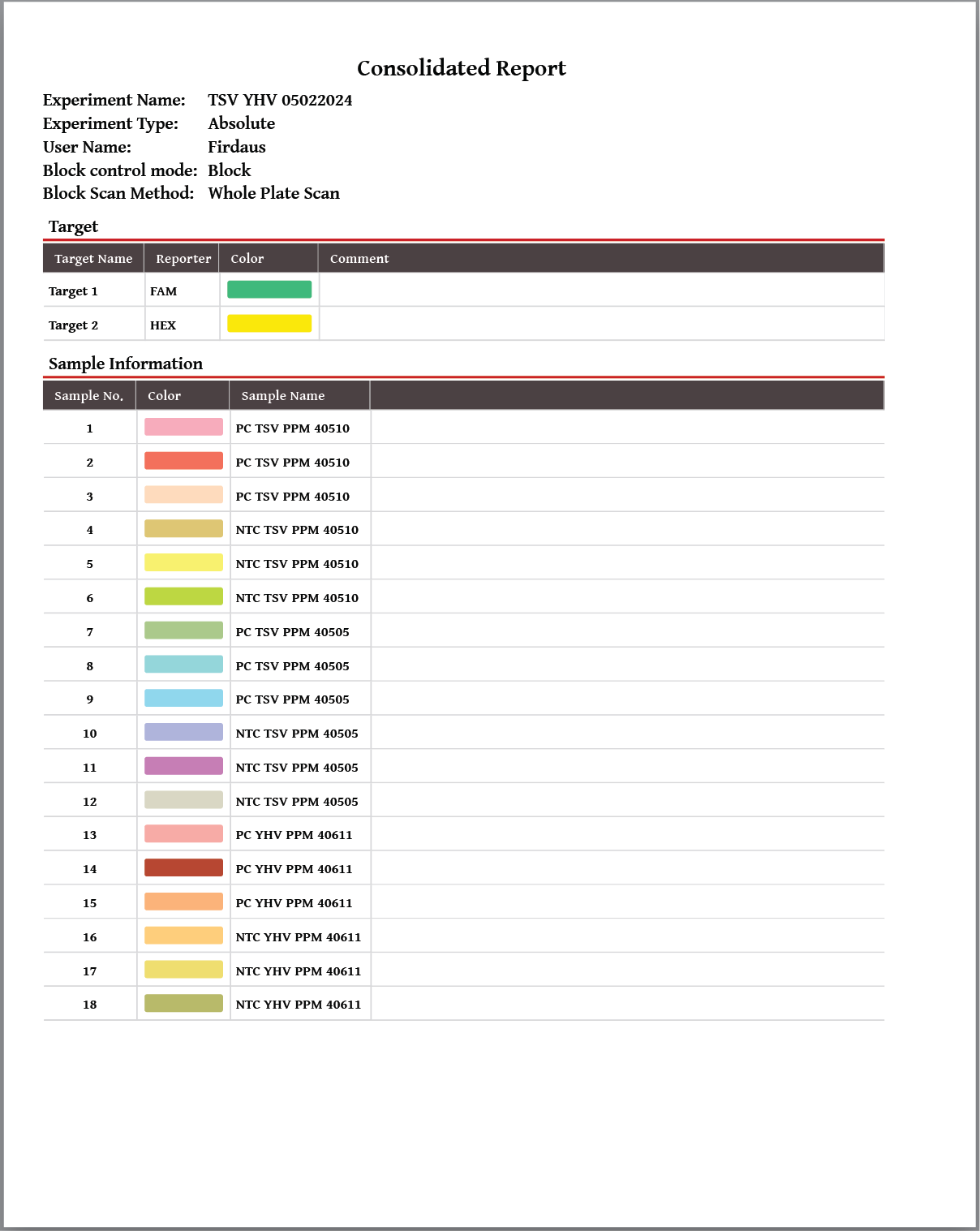

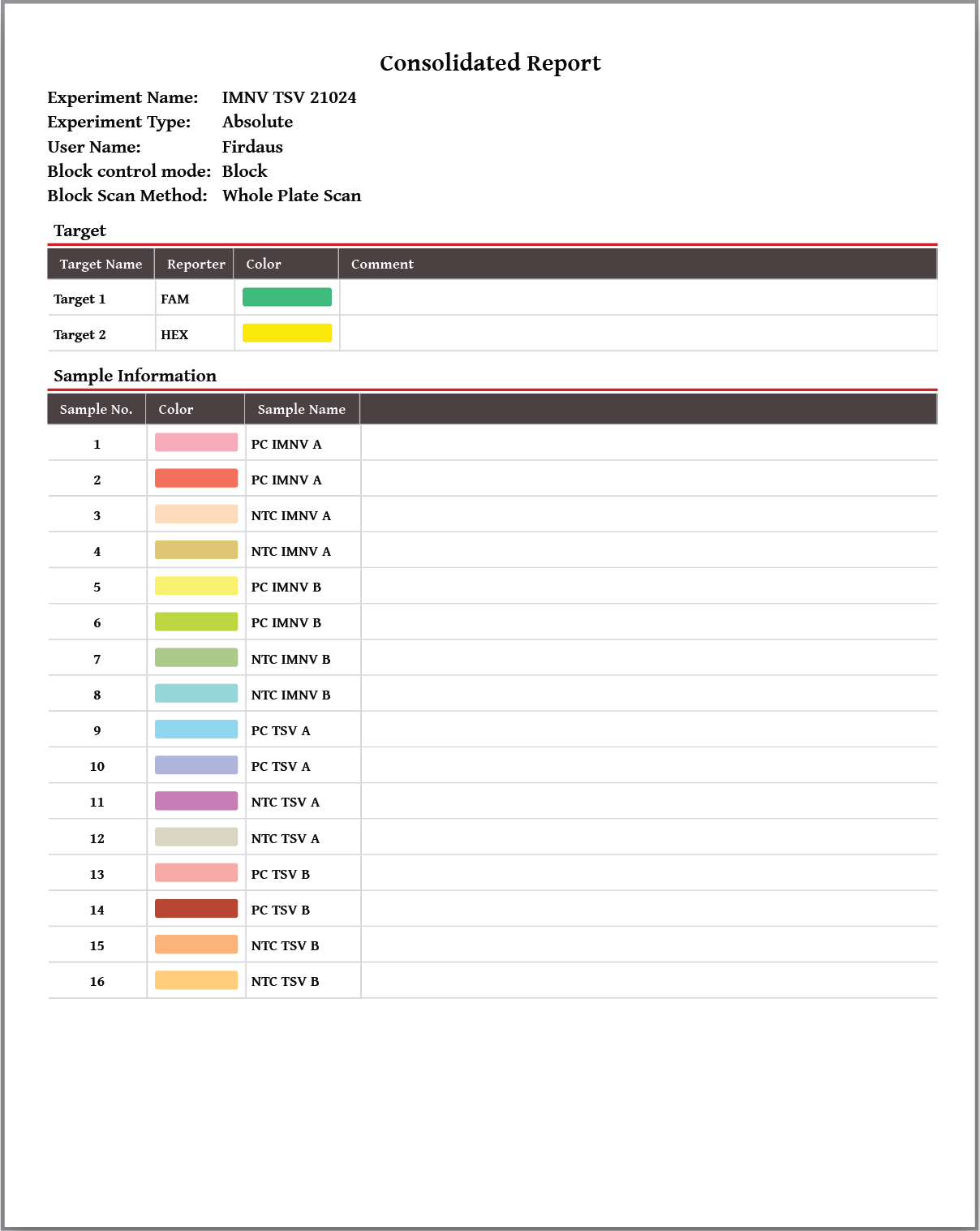

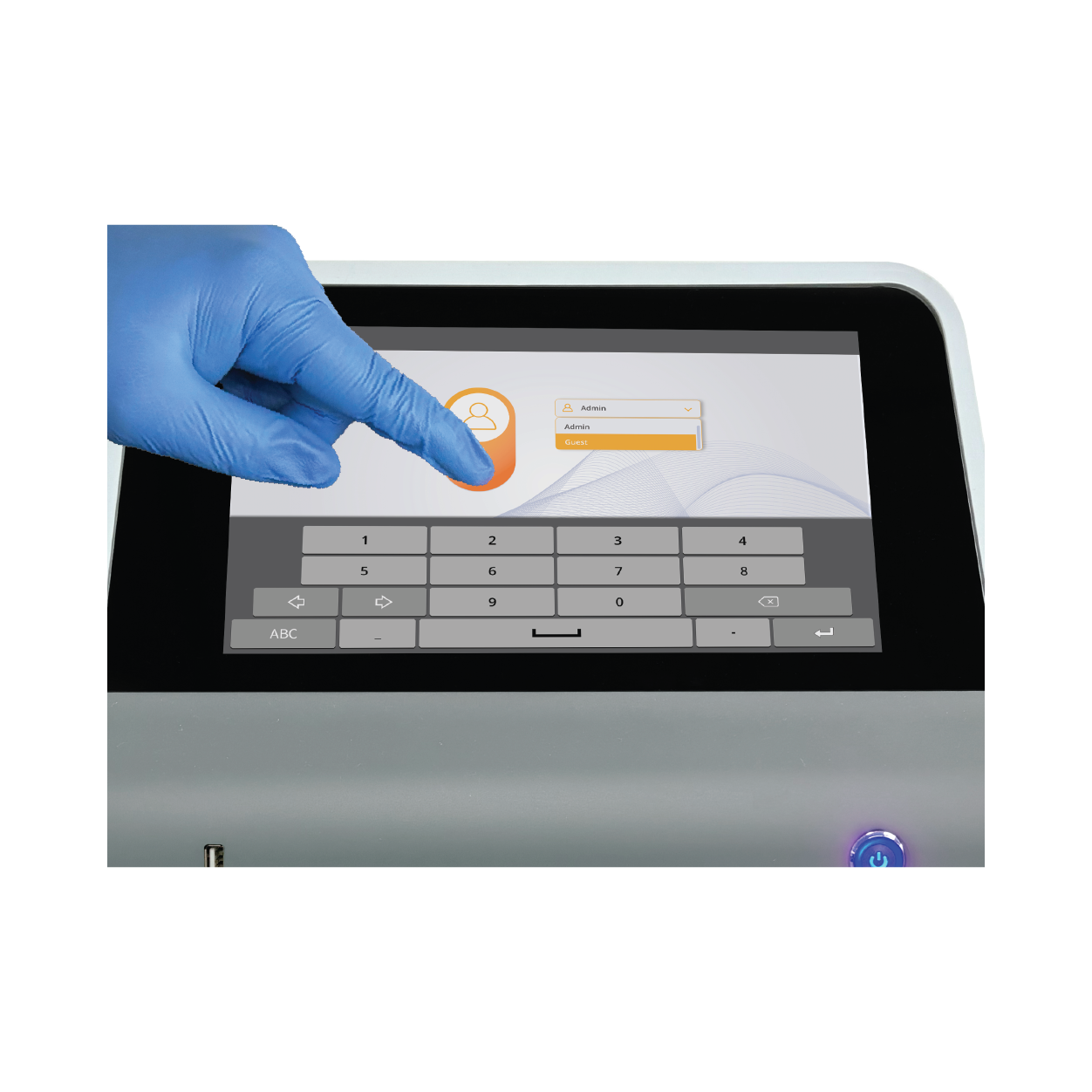

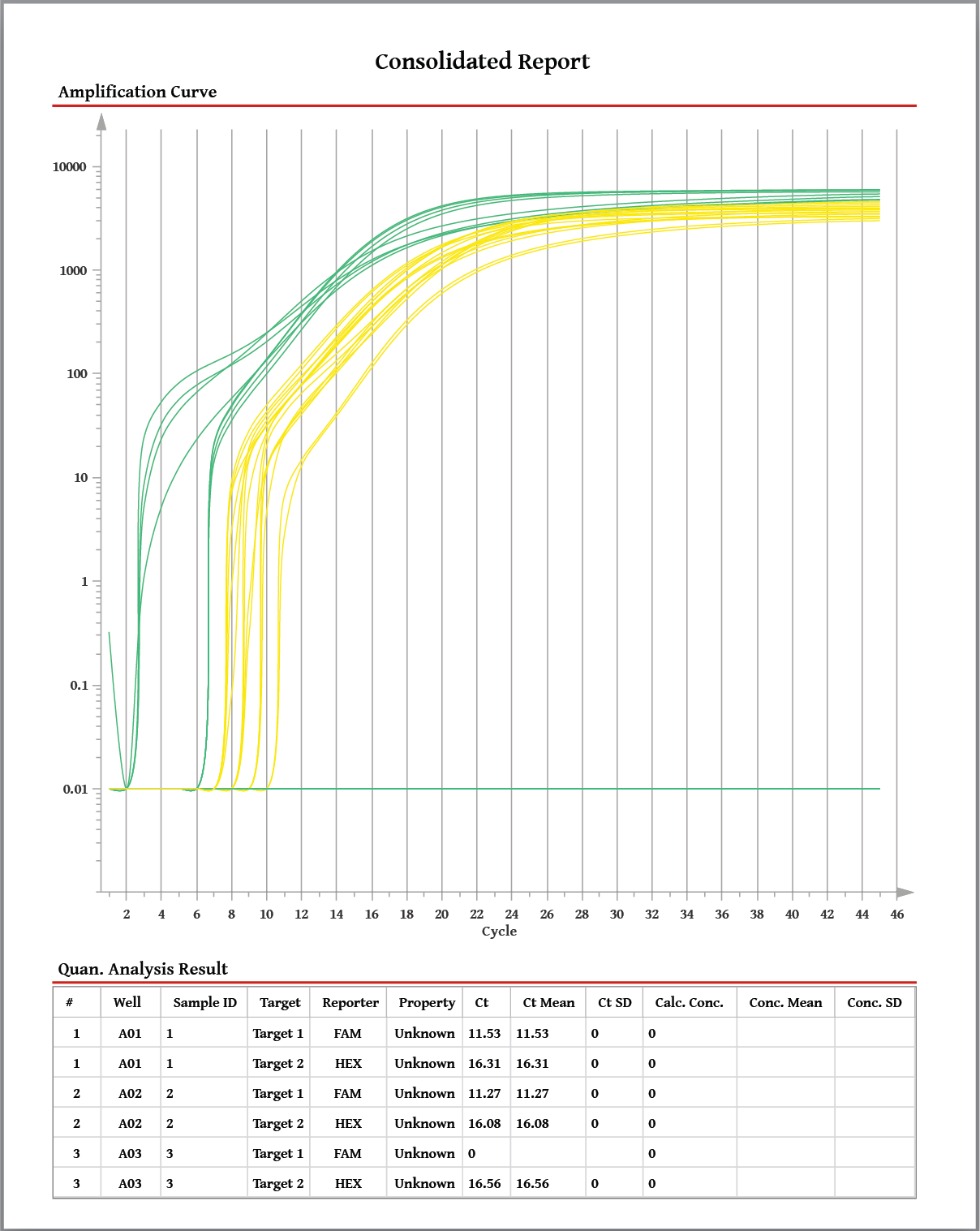

Advanced software analysis available either at machine touch screen to be run independently or available at PC version. Multiple analyses such as quantitative analysis, melting curve analysis, SNP genotyping, absolute/relative quantification and gradient analysis |
||
Technical Data
| Specifications | ViPlex Fluor96 Real-Time PCR System |
|---|---|
| MC40324 | |
| Sample capacity | 96 x 0.2ml (single block) |
| Consumables | Clear 0.2ml flat PCR tubes / 8-tube flat PCR strips / 96 well of 0.2ml half-skirted or no-skirted plate |
| Reaction volume | 5 - 100µl |
| Light source | Full-spectrum LED |
| Detector | PMT – Photomultiplier Tube |
| Detection location | Top detection |
| Scan mode | Full plate scan or specified line scan |
| Ramp rate (max.) | ≥6°C / s |
| Temperature uniformity | ≤±0.1°C |
| Temperature accuracy | ≤±0.1°C |
| Temperature range | 4 - 105°C |
| Hot lid temperature | 30 - 110°C (adjustable, default 105°C) |
| Gradient temperature difference | 1 - 40°C |
| Fluorescence intensity detection repeatability | CV ≤3% |
| Temperature control | Block / tube |
| Emission wavelength | 500 – 720nm |
| Multiplexing | Channel 1: FAM™/SYBR Green Channel 4: ROX™/Texas Red® Channel 2: HEX™/VIC®/TET™/JOE™ Channel 5: Cy5™ Channel 3: TAMRA/NED™/Cy3™ Channel 6: Cy5.5™ |
| Excitation wavelength | 400 - 800nm |
| Emission wavelength | 500 - 800nm |
| Display | 10-inch high-definition color touch screen |
| Operation system | PC software or touch screen machine software |

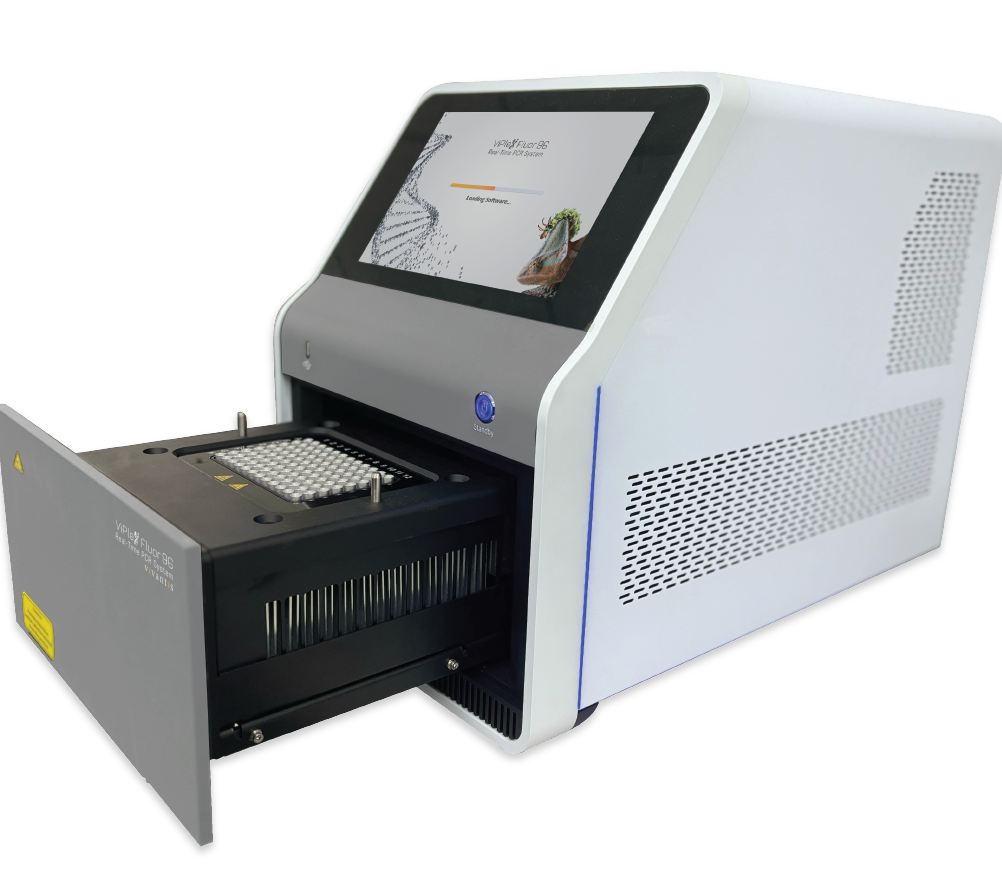

| Sample plate control mode | Automatic in/out, dual software detection, preset interface, automatic workstation can be connected |
| Communication ports | USB Type-A port x 2; USB Type-B port; RJ45 port |
| Power supply | DC15V 255W |
| Voltage | 100-240V; 1000W 50/60Hz |
| Dimension (W x D x H) | 320 x 525 x 420 mm |
| Weight | 27kg |
Ordering Information
| Catalog No | Description |
|---|---|
| MC60966 | ViPlex Fluor96 Real-Time PCR System, 96 well x 0.2ml block, 6 channels |
Download
Flyer
ViPlex Fluor96 Real-Time PCR System
